UI element overlays with Grid

The Jetpack Compose Grid API is designed for structural, two-dimensional screen layouts. Unlike lazy grids, which are optimized for large data sets, Grid lets you define a fixed or responsive layout structure using tracks (rows and columns), gaps, and grid areas. You place items into this structure using Modifier.gridItem, which gives you explicit control over positioning and spanning within the grid container.

When your UI requires multiple items in the same grid area or overlapping areas—such as badge overlays, status indicators, or layered cards—coordinate ambiguity can make layout behavior unpredictable. Managing the depth of overlapping components without resorting to complex Box nesting or manual coordinate offsets is essential for maintaining clean, readable layout code.

Best practices

• Declaration order: Grid follows standard zIndex ordering based on the order of declaration within the Grid block. Items declared later in the Grid content block are rendered on top of items declared earlier.
• Explicit z-index control: Use Modifier.zIndex if you need to explicitly control or override the default drawing order of overlapping elements.
• Named area vs item overlays: Use Grid and named areas to define the structure of your layout, but keep complex overlay logic inside the specific gridItem if those overlays are logically tied to that grid cell.
• Intentional spans for overlays: When overlaying, ensure that the rowSpan and columnSpan parameters are intentional for the overlapping elements to control how much of the underlying content is obscured.

Ingredients

• Grid: A structural, two-dimensional layout container
• GridConfigurationScope.area: Scope function used to define named regions and overlay areas across grid tracks
• Modifier.gridItem: Modifier used to place and span composables across grid tracks or into named grid areas
• Modifier.zIndex: Modifier used to explicitly control drawing and layer elevation order

Steps

Configure your grid layout and named areas, position the base layer content within target grid coordinates, and place overlay elements in the shared grid cells or overlapping areas.

1. Define the grid configuration

Create a Grid composable configuration specifying row and column tracks, as well as named areas that span across cells to define overlay regions:

enum class Areas { BASE, OVERLAY }

val gridConfig: GridConfigurationScope.() -> Unit = {
    repeat(3) {
        column(GridTrackSize.Fixed(100.dp))
    }
    row(GridTrackSize.Fixed(100.dp))

    area(areaId = Areas.BASE, row = 1, column = 1, columnSpan = 2)
    // Define a named area spanning multiple columns that overlaps other cells
    area(areaId = Areas.OVERLAY, row = 1, column = 2, columnSpan = 2)
}
GridByExamples.kt

2. Place base content and declare overlays

Place your base composables in the grid cells using Modifier.gridItem. Grid follows standard zIndex ordering based on composition order, so items declared later within the Grid block are drawn on top of earlier items. When placing an overlay in the same cell or an overlapping area, declare the overlay composable after the base element, or reference a named area. You can use Modifier.zIndex if you need to explicitly control or override this default drawing order.

Grid(
    config = gridConfig,
) {
    // Base Layer
    TextCard("BASE", Modifier.gridItem(areaId = Areas.BASE))
    // Overlay Layer
    TextCard(
        "OVERLAY",
        Modifier.gridItem(areaId = Areas.OVERLAY),
        color = Color(0xDD4B608D)
    )
}
GridByExamples.kt

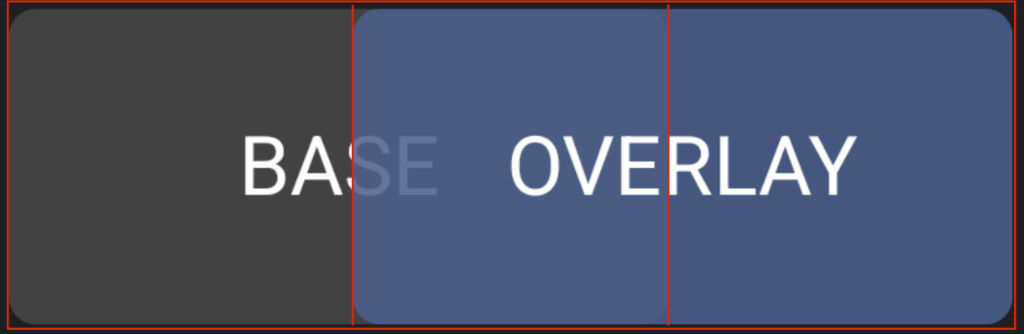

Results

Your UI elements overlay predictably within the 2D grid structure. By relying on standard declaration ordering, you avoid complex nested containers while maintaining clean, responsive layout code.
