创建卡片式布局

试用 Compose 方式
Jetpack Compose 是推荐用于 Android 的界面工具包。了解如何在 Compose 中使用布局。

应用通常需要在样式相似的容器中显示数据,例如用于保存列表中项目相关信息的容器。系统提供了 CardView API,让您可以在卡片中显示信息,从而在整个平台中保持一致的外观。例如,卡片在其所属视图组上方具有默认高度,因此系统会在其下方绘制阴影。卡片可用来包含一组视图,同时为容器提供一致的样式。

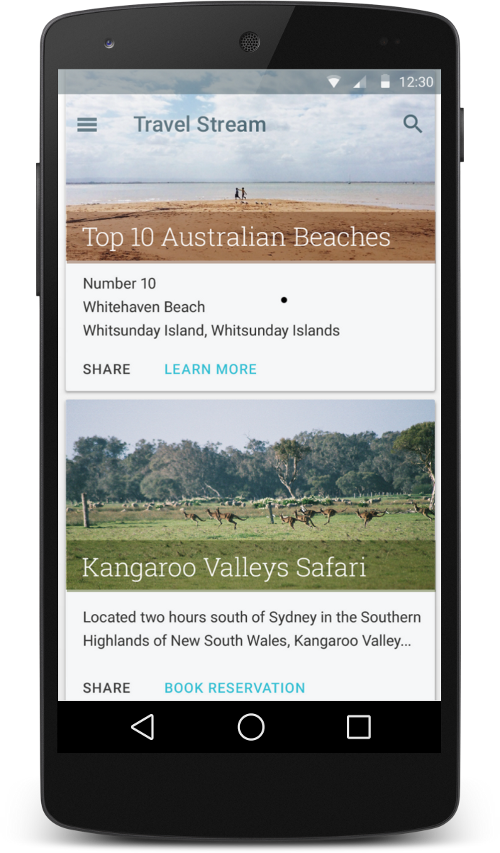

一张图片,显示根据卡片一览应用界面
图 1. 基于卡片的应用界面。

添加依赖项

CardView widget 是 AndroidX 的一部分。如需在您的项目中使用它,请将以下依赖项添加到应用模块的 build.gradle 文件中:

Groovy

dependencies {
    implementation "androidx.cardview:cardview:1.0.0"
}

Kotlin

dependencies {
    implementation("androidx.cardview:cardview:1.0.0")
}

创建卡片

如需使用 CardView,请将其添加到布局文件中。将其用作视图组以包含其他视图。在以下示例中,CardView 包含一个 ImageView 和几个 TextViews,用于向用户显示一些信息:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:padding="16dp"
    android:background="#E0F7FA"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent">

        <androidx.constraintlayout.widget.ConstraintLayout
            android:padding="4dp"
            android:layout_width="match_parent"
            android:layout_height="match_parent">

            <ImageView
                android:id="@+id/header_image"
                android:layout_width="match_parent"
                android:layout_height="200dp"
                android:src="@drawable/logo"
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintTop_toTopOf="parent" />

            <TextView
                android:id="@+id/title"
                style="@style/TextAppearance.MaterialComponents.Headline3"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginTop="4dp"
                android:text="I'm a title"
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintTop_toBottomOf="@id/header_image" />

            <TextView
                android:id="@+id/subhead"
                style="@style/TextAppearance.MaterialComponents.Subtitle2"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginTop="4dp"
                android:text="I'm a subhead"
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintTop_toBottomOf="@id/title" />

            <TextView
                android:id="@+id/body"
                style="@style/TextAppearance.MaterialComponents.Body1"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginTop="4dp"
                android:text="I'm a supporting text. Very Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum."
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintTop_toBottomOf="@id/subhead" />
        </androidx.constraintlayout.widget.ConstraintLayout>
    </androidx.cardview.widget.CardView>
</androidx.constraintlayout.widget.ConstraintLayout>

假设您使用相同的 Android 徽标图片,上述代码段会生成与下方示例类似的内容:

显示单张卡片的图片
图 2. 基于 CardView 的布局的基本示例。

此示例中的卡片以默认高度绘制到屏幕上,这会导致系统在其下方绘制阴影。您可以使用 card_view:cardElevation 属性为卡片提供自定义高度。海拔较高的卡片具有更明显的阴影,海拔较低的卡片具有较浅的阴影。CardView 在 Android 5.0(API 级别 21)及更高版本上使用实际高度和动态阴影。

使用以下属性自定义 CardView widget 的外观:

  • 如需在布局中设置圆角半径,请使用 card_view:cardCornerRadius 属性。
  • 如需在代码中设置圆角半径,请使用 CardView.setRadius 方法。
  • 如需设置卡片的背景色,请使用 card_view:cardBackgroundColor 属性。
