Buttons in Jetpack Compose Glimmer

Applicable XR devices

This guidance helps you build experiences for these types of XR devices.

Learn about XR device types →

Learn about XR device types →

In Jetpack Compose Glimmer, a Button is an interactive component that's optimized for display glasses input, offering clear visual feedback through its states to guide user actions.

Buttons are built on the Jetpack Compose Glimmer surface system, which automatically handles physical properties like borders and depth.

The standard button contains a text label and optional icons. You can use it for primary or secondary actions. There are also specialized buttons, such as icon buttons and toggle buttons, which are defined as separate components in Jetpack Compose Glimmer.

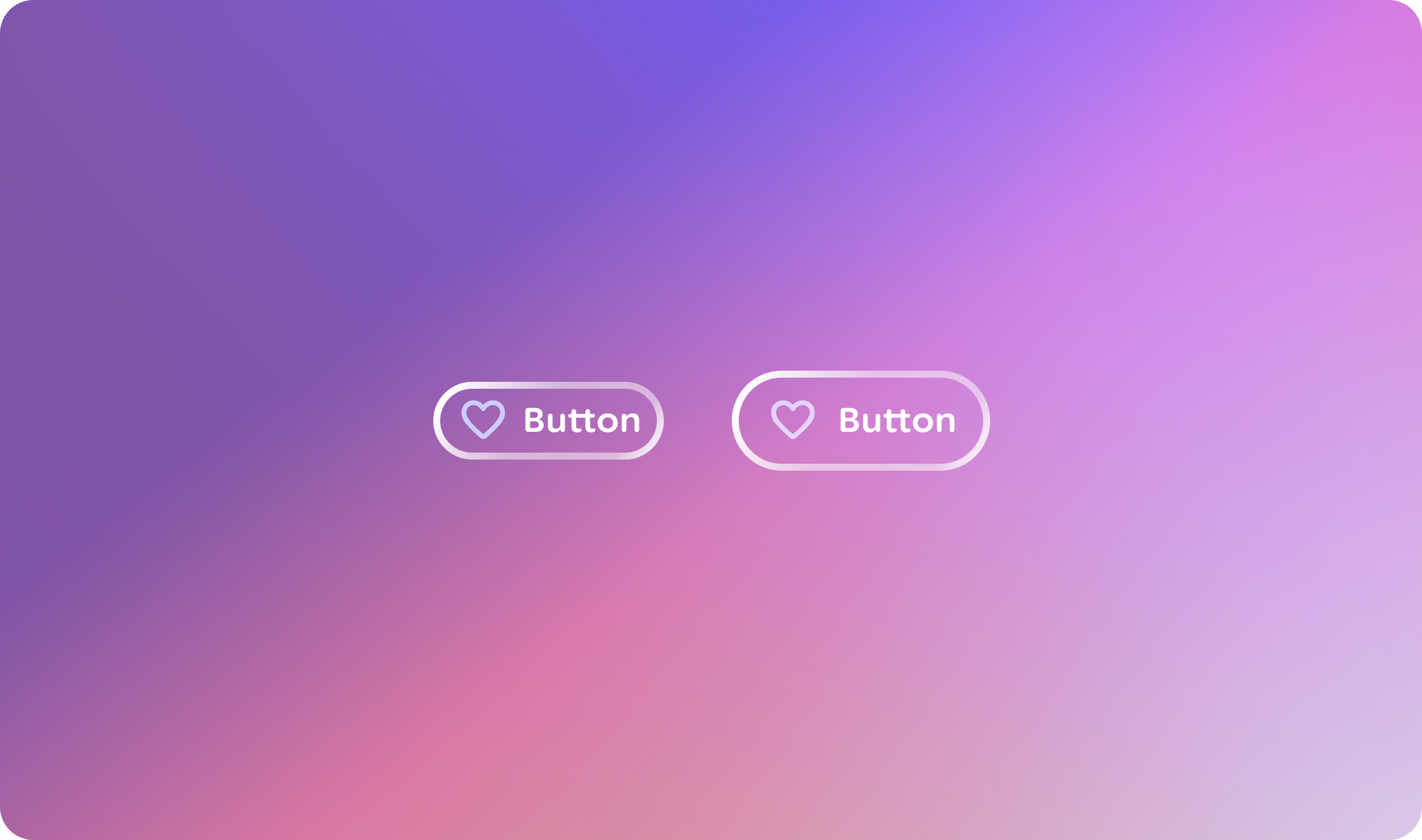

Default

Large

Anatomy

A button consists of a container and a label, with optional leading and trailing icons.

Sizes

Jetpack Compose Glimmer buttons support two size variants. These affect the minimum height and internal padding.

States

Buttons in Jetpack Compose Glimmer change their appearance to communicate their state.

• Enabled: The default state for an interactive button.
• Focused: When focused, the button applies a GlimmerTheme.depthEffectLevels.level1 and a focused border highlight.
• Pressed: When activated, a semi-transparent white overlay is applied to the surface.
• Disabled: The button doesn't respond to input and its visual appearance is adjusted.

Button defaults

The following defaults apply to standard buttons:

• By default, buttons use GlimmerTheme.typography.bodySmall. Make sure that text within buttons is concise and clearly describes the action.
• The default shape for a button is GlimmerTheme.shapes.large. This consistent rounding helps users identify buttons across the display glasses interface.

Example: Button with text and icons

A basic button includes only a text label, but you can also add icons to the start (using leadingIcon) or end (using trailingIcon) of the text to provide additional context.

The following code creates a button with both a leading and trailing icon:

Button(
    onClick = { /* Handle navigation or action */ },
    leadingIcon = { Icon(FavoriteIcon, contentDescription = null) },
    trailingIcon = { Icon(SendIcon, contentDescription = null) }
) {
    Text("Text Label", style = GlimmerTheme.typography.titleSmall)
}
ButtonSamples.kt

Button groups

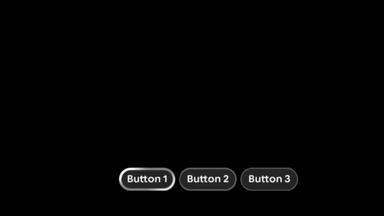

The ButtonGroup composable lets you group buttons into a scrollable row that acts as a focus controller. As the user scrolls, focus automatically moves to highlight the button corresponding to the current scroll position.

Example: Button groups

ButtonGroup(modifier = Modifier.fillMaxWidth()) {
    Button(onClick = {}) { Text("Button 1") }
    Button(onClick = {}) { Text("Button 2") }
    Button(onClick = {}) { Text("Button 3") }
    Button(onClick = {}) { Text("Button 4") }
    Button(onClick = {}) { Text("Button 5") }
}
ButtonSamples.kt

Focus control in button groups

You can move the focus to any button in a group to manually control the selection.

Customize and control scrolling behavior using the ButtonGroup state:

1. Declare the state with rememberButtonGroupState.
2. Pass it to the ButtonGroup composable.
3. Call animateScrollToItem (or scrollToItem for instant scrolling) to scroll to a specific item and automatically move focus to it.

The following code moves the focus from one button to another upon click:

val scope = rememberCoroutineScope()
val state = rememberButtonGroupState()
ButtonGroup(modifier = Modifier.fillMaxWidth(), state = state) {
    Button(onClick = { scope.launch { state.animateScrollToItem(1) } }) {
        Text("Select last item")
    }
    Button(onClick = { scope.launch { state.animateScrollToItem(0) } }) {
        Text("Select first item")
    }
}
ButtonSamples.kt

Customize focus color for brand expression

In Jetpack Compose Glimmer, components are designed and optimized for transparent displays, so they rely primarily on subtle translucent surfaces and high-contrast borders to ensure legibility and visual comfort against the real world. Because resting states favor neutral tones to avoid both visual fatigue and obstructing the user's field of view, the focusedColor parameter on Button provides the primary affordance expressing your app's brand.

This affordance makes your brand's accent a dynamic part of the system's active interaction state instead of tinting idle buttons with saturated colors that might compromise transparency and contrast in optical see-through environments. When focused, the button elevates its background to this branded hue, paired with automatic content contrast recalculation using calculateContentColor(focusedColor), achieving clear, interactive feedback while preserving the restraint and optical ergonomics required on display glasses.

The following example shows how override the default focusedColor with your brand's color:

Button(
    onClick = {},
    focusedColor = brandColor,
) {
    Text("Focus Color Button")
}
ButtonSamples.kt
