اصلاح کننده های گرافیکی

var pointerOffset by remember {
    mutableStateOf(Offset(0f, 0f))
}
Column(
    modifier = Modifier
        .fillMaxSize()
        .pointerInput("dragging") {
            detectDragGestures { change, dragAmount ->
                pointerOffset += dragAmount
            }
        }
        .onSizeChanged {
            pointerOffset = Offset(it.width / 2f, it.height / 2f)
        }
        .drawWithContent {
            drawContent()
            // draws a fully black area with a small keyhole at pointerOffset that’ll show part of the UI.
            drawRect(
                Brush.radialGradient(
                    listOf(Color.Transparent, Color.Black),
                    center = pointerOffset,
                    radius = 100.dp.toPx(),
                )
            )
        }
) {
    // Your composables here
}
GraphicsModifiersSnippets.kt

Text(
    "Hello Compose!",
    modifier = Modifier
        .drawBehind {
            drawRoundRect(
                Color(0xFFBBAAEE),
                cornerRadius = CornerRadius(10.dp.toPx())
            )
        }
        .padding(4.dp)
)
GraphicsModifiersSnippets.kt

Text(
    "Hello Compose!",
    modifier = Modifier
        .drawWithCache {
            val brush = Brush.linearGradient(
                listOf(
                    Color(0xFF9E82F0),
                    Color(0xFF42A5F5)
                )
            )
            onDrawBehind {
                drawRoundRect(
                    brush,
                    cornerRadius = CornerRadius(10.dp.toPx())
                )
            }
        }
)
GraphicsModifiersSnippets.kt

Image(
    painter = painterResource(id = R.drawable.sunset),
    contentDescription = "Sunset",
    modifier = Modifier
        .graphicsLayer {
            this.scaleX = 1.2f
            this.scaleY = 0.8f
        }
)
GraphicsModifiersSnippets.kt

Image(
    painter = painterResource(id = R.drawable.sunset),
    contentDescription = "Sunset",
    modifier = Modifier
        .graphicsLayer {
            this.translationX = 100.dp.toPx()
            this.translationY = 10.dp.toPx()
        }
)
GraphicsModifiersSnippets.kt

Image(
    painter = painterResource(id = R.drawable.sunset),
    contentDescription = "Sunset",
    modifier = Modifier
        .graphicsLayer {
            this.rotationX = 90f
            this.rotationY = 275f
            this.rotationZ = 180f
        }
)
GraphicsModifiersSnippets.kt

Image(
    painter = painterResource(id = R.drawable.sunset),
    contentDescription = "Sunset",
    modifier = Modifier
        .graphicsLayer {
            this.transformOrigin = TransformOrigin(0f, 0f)
            this.rotationX = 90f
            this.rotationY = 275f
            this.rotationZ = 180f
        }
)
GraphicsModifiersSnippets.kt

Column(modifier = Modifier.padding(16.dp)) {
    Box(
        modifier = Modifier
            .size(200.dp)
            .graphicsLayer {
                clip = true
                shape = CircleShape
            }
            .background(Color(0xFFF06292))
    ) {
        Text(
            "Hello Compose",
            style = TextStyle(color = Color.Black, fontSize = 46.sp),
            modifier = Modifier.align(Alignment.Center)
        )
    }
    Box(
        modifier = Modifier
            .size(200.dp)
            .clip(CircleShape)
            .background(Color(0xFF4DB6AC))
    )
}
GraphicsModifiersSnippets.kt

Column(modifier = Modifier.padding(16.dp)) {
    Box(
        modifier = Modifier
            .clip(RectangleShape)
            .size(200.dp)
            .border(2.dp, Color.Black)
            .graphicsLayer {
                clip = true
                shape = CircleShape
                translationY = 50.dp.toPx()
            }
            .background(Color(0xFFF06292))
    ) {
        Text(
            "Hello Compose",
            style = TextStyle(color = Color.Black, fontSize = 46.sp),
            modifier = Modifier.align(Alignment.Center)
        )
    }

    Box(
        modifier = Modifier
            .size(200.dp)
            .clip(RoundedCornerShape(500.dp))
            .background(Color(0xFF4DB6AC))
    )
}
GraphicsModifiersSnippets.kt

Image(
    painter = painterResource(id = R.drawable.sunset),
    contentDescription = "clock",
    modifier = Modifier
        .graphicsLayer {
            this.alpha = 0.5f
        }
)
GraphicsModifiersSnippets.kt

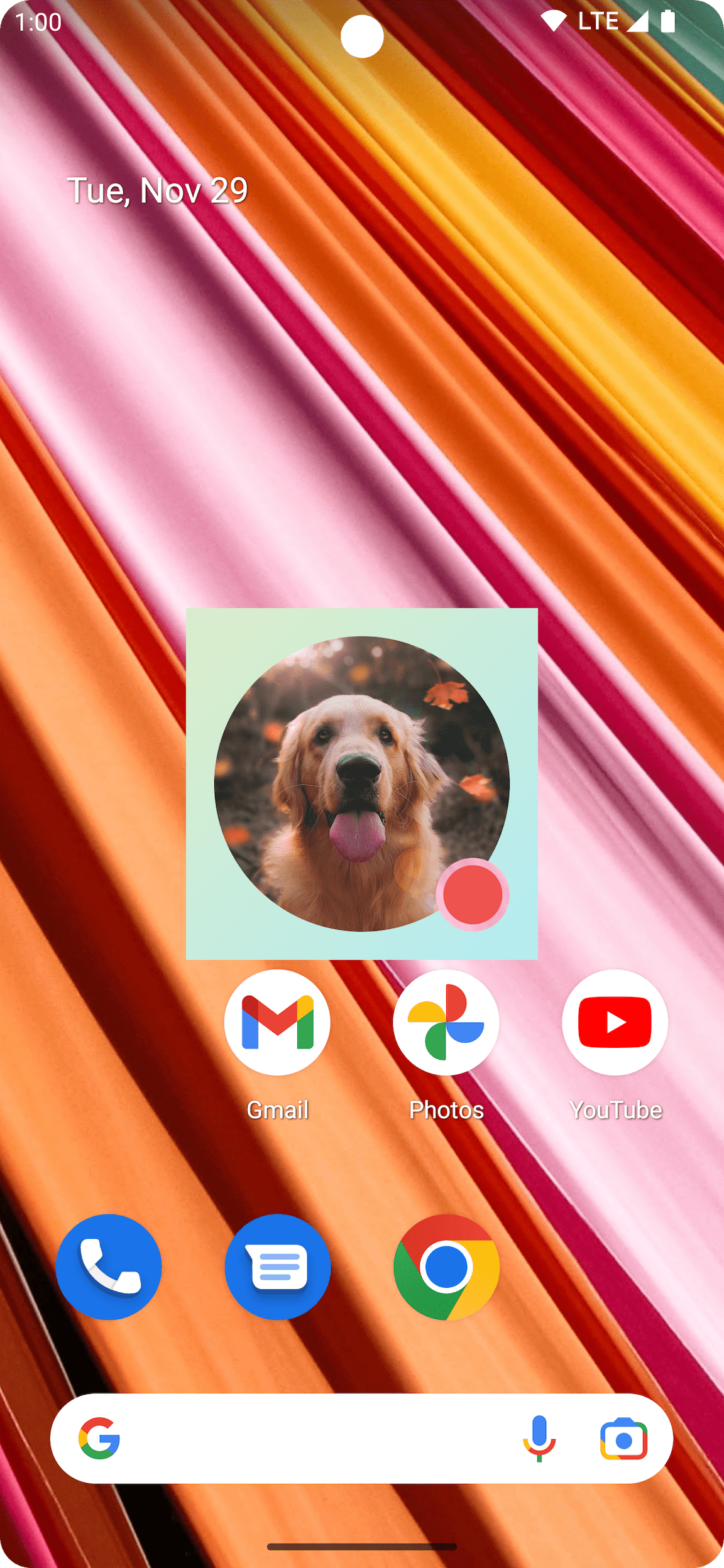

Image(
    painter = painterResource(id = R.drawable.dog),
    contentDescription = "Dog",
    contentScale = ContentScale.Crop,
    modifier = Modifier
        .size(120.dp)
        .aspectRatio(1f)
        .background(
            Brush.linearGradient(
                listOf(
                    Color(0xFFC5E1A5),
                    Color(0xFF80DEEA)
                )
            )
        )
        .padding(8.dp)
        .graphicsLayer {
            compositingStrategy = CompositingStrategy.Offscreen
        }
        .drawWithCache {
            val path = Path()
            path.addOval(
                Rect(
                    topLeft = Offset.Zero,
                    bottomRight = Offset(size.width, size.height)
                )
            )
            onDrawWithContent {
                clipPath(path) {
                    // this draws the actual image - if you don't call drawContent, it wont
                    // render anything
                    this@onDrawWithContent.drawContent()
                }
                val dotSize = size.width / 8f
                // Clip a white border for the content
                drawCircle(
                    Color.Black,
                    radius = dotSize,
                    center = Offset(
                        x = size.width - dotSize,
                        y = size.height - dotSize
                    ),
                    blendMode = BlendMode.Clear
                )
                // draw the red circle indication
                drawCircle(
                    Color(0xFFEF5350), radius = dotSize * 0.8f,
                    center = Offset(
                        x = size.width - dotSize,
                        y = size.height - dotSize
                    )
                )
            }
        }
)
GraphicsModifiersSnippets.kt

@Composable
fun CompositingStrategyExamples() {
    Column(
        modifier = Modifier
            .fillMaxSize()
            .wrapContentSize(Alignment.Center)
    ) {
        // Does not clip content even with a graphics layer usage here. By default, graphicsLayer
        // does not allocate + rasterize content into a separate layer but instead is used
        // for isolation. That is draw invalidations made outside of this graphicsLayer will not
        // re-record the drawing instructions in this composable as they have not changed
        Canvas(
            modifier = Modifier
                .graphicsLayer()
                .size(100.dp) // Note size of 100 dp here
                .border(2.dp, color = Color.Blue)
        ) {
            // ... and drawing a size of 200 dp here outside the bounds
            drawRect(color = Color.Magenta, size = Size(200.dp.toPx(), 200.dp.toPx()))
        }

        Spacer(modifier = Modifier.size(300.dp))

        /* Clips content as alpha usage here creates an offscreen buffer to rasterize content
        into first then draws to the original destination */
        Canvas(
            modifier = Modifier
                // force to an offscreen buffer
                .graphicsLayer(compositingStrategy = CompositingStrategy.Offscreen)
                .size(100.dp) // Note size of 100 dp here
                .border(2.dp, color = Color.Blue)
        ) {
            /* ... and drawing a size of 200 dp. However, because of the CompositingStrategy.Offscreen usage above, the
            content gets clipped */
            drawRect(color = Color.Red, size = Size(200.dp.toPx(), 200.dp.toPx()))
        }
    }
}
GraphicsModifiersSnippets.kt

@Preview
@Composable
fun CompositingStrategy_ModulateAlpha() {
    Column(
        modifier = Modifier
            .fillMaxSize()
            .padding(32.dp)
    ) {
        // Base drawing, no alpha applied
        Canvas(
            modifier = Modifier.size(200.dp)
        ) {
            drawSquares()
        }

        Spacer(modifier = Modifier.size(36.dp))

        // Alpha 0.5f applied to whole composable
        Canvas(
            modifier = Modifier
                .size(200.dp)
                .graphicsLayer {
                    alpha = 0.5f
                }
        ) {
            drawSquares()
        }
        Spacer(modifier = Modifier.size(36.dp))

        // 0.75f alpha applied to each draw call when using ModulateAlpha
        Canvas(
            modifier = Modifier
                .size(200.dp)
                .graphicsLayer {
                    compositingStrategy = CompositingStrategy.ModulateAlpha
                    alpha = 0.75f
                }
        ) {
            drawSquares()
        }
    }
}

private fun DrawScope.drawSquares() {

    val size = Size(100.dp.toPx(), 100.dp.toPx())
    drawRect(color = Red, size = size)
    drawRect(
        color = Purple, size = size,
        topLeft = Offset(size.width / 4f, size.height / 4f)
    )
    drawRect(
        color = Yellow, size = size,
        topLeft = Offset(size.width / 4f * 2f, size.height / 4f * 2f)
    )
}

val Purple = Color(0xFF7E57C2)
val Yellow = Color(0xFFFFCA28)
val Red = Color(0xFFEF5350)
GraphicsModifiersSnippets.kt

val coroutineScope = rememberCoroutineScope()
val graphicsLayer = rememberGraphicsLayer()
Box(
    modifier = Modifier
        .drawWithContent {
            // call record to capture the content in the graphics layer
            graphicsLayer.record {
                // draw the contents of the composable into the graphics layer
                this@drawWithContent.drawContent()
            }
            // draw the graphics layer on the visible canvas
            drawLayer(graphicsLayer)
        }
        .clickable {
            coroutineScope.launch {
                val bitmap = graphicsLayer.toImageBitmap()
                // do something with the newly acquired bitmap
            }
        }
        .background(Color.White)
) {
    Text("Hello Android", fontSize = 26.sp)
}
AdvancedGraphicsSnippets.kt

class FlippedModifier : DrawModifier {
    override fun ContentDrawScope.draw() {
        scale(1f, -1f) {
            this@draw.drawContent()
        }
    }
}

fun Modifier.flipped() = this.then(FlippedModifier())
GraphicsModifiersSnippets.kt

Text(
    "Hello Compose!",
    modifier = Modifier
        .flipped()
)
GraphicsModifiersSnippets.kt
