Service bindings and process states

App processes on Android do not exist in isolation. Applications often rely on services provided by other applications or the system itself. When one process connects to another via a Service Binding, it creates a dependency that has a profound impact on how the Android framework manages memory.

Process states and OOM scores

The Android framework uses Process States to track the importance of each running process. These states are then used by the OomAdjuster to assign an OOM Score Adjustment (oom_score_adj) value, ranging from -1000 to 1000.

A lower oom_score_adj means the process is more important and less likely to be killed by the Low Memory Killer (LMK).

Common process states

The following table shows some of the most common process states and their typical oom_score_adj values. For a complete and up-to-date list, refer to android.app.ActivityManager and com.android.server.am.psc.Constants in the Android source code.

The impact of service bindings

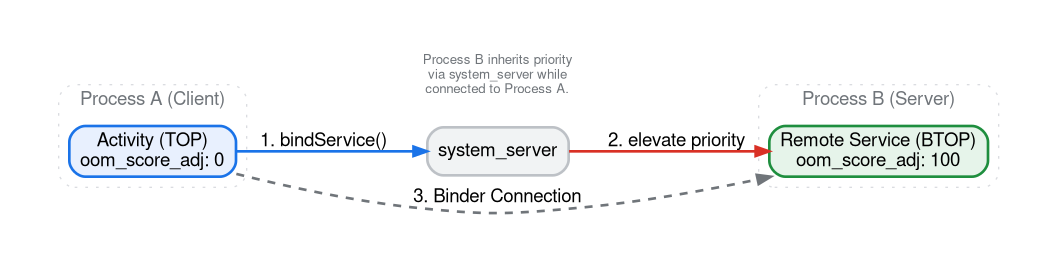

When a client process (e.g., an app in the TOP state) binds to a service in a server process, the server process often inherits an elevated priority. This ensures that the service remains available as long as the client needs it.

Controlling inheritance with BIND flags

Inheritance is the default behavior when using Context.BIND_AUTO_CREATE. However, developers can control how the binding affects the target process's importance using various flags in bindService().

Key BIND flags for OOM score

The following flags are most relevant when managing system-wide memory pressure:

• BIND_AUTO_CREATE: The most common flag. It ensures the service process is started and kept alive as long as the binding exists. By default, it also elevates the server process priority to match the client.
• BIND_NOT_FOREGROUND: Prevents the target service's process from being raised to the foreground scheduling priority (CPU priority). However, it still allows the memory priority (oom_score_adj) to be elevated. This is useful for background work that shouldn't compete with the UI for CPU cycles but should still be protected from being killed.
• BIND_WAIVE_PRIORITY: A very strong flag that instructs the system not to impact the scheduling or memory management priority of the target process. The service process will be managed as if it were a regular background process on the LRU list, making it eligible for OOM killing even while bound.
• BIND_ABOVE_CLIENT: Indicates the service is more important than the client app itself. When the system needs to reclaim memory, it will prefer killing the client app before killing the bound service. This is "stronger" than BIND_AUTO_CREATE as it provides an extra layer of protection for the service at the expense of the client.
• BIND_NOT_PERCEPTIBLE: Lowers the target service's importance to below PERCEPTIBLE level, allowing the system to reclaim its memory to make room for more critical user-perceptible processes.

Hands-on: observing binding effects

We will use the MemoryLab application to demonstrate how a binding from a TOP app affects the state of a separate process.

1. Launch MemoryLab

The following command launches the app. After it opens, ensure the app stays in the foreground (do not press Home or switch apps yet).

adb shell am start -n com.android.memorylab/.MainActivity

2. Identify processes

Check the process states before binding. MemoryLab runs its main UI in one process and has a RemoteService that runs in a :remote process.

adb shell dumpsys activity processes com.android.memorylab

Sample output snippet:

  Process OOM control (154 total, non-act at 7, non-svc at 7):
    Proc #0: fg       T/A/TOP  LCMNFUATI  t: 0 13470:com.android.memorylab/u0a417 (top-activity)
        oom: max=1001 curRaw=0 setRaw=0 cur=0 set=0
        state: cur=TOP  set=TOP   lastRss=0.00 lastCachedRss=0.00

You will see the main process com.android.memorylab in the TOP state. The :remote process is not yet started.

3. Trigger binding

Send a broadcast to the app to trigger the service binding:

adb shell am broadcast -a com.android.memorylab.LEAK_BINDER

4. Observe elevated state

Check the process states again:

adb shell dumpsys activity processes | grep -A 10 "com.android.memorylab"

Sample output snippet:

  Proc #  1: vis      F/ /BTOP ---NFUATI  t: 0 13560:com.android.memorylab:remote/u0a417 (service)
    com.android.memorylab/.RemoteService<=Proc{13470:com.android.memorylab/u0a417}
    oom: max=1001 curRaw=100 setRaw=100 cur=100 set=100
    state: cur=BTOP set=BTOP  lastRss=0.00 lastCachedRss=0.00

The :remote process is now running and in the BTOP (Bound TOP) state with an oom_score_adj of 100. This is significantly more protected than a typical background service (which would be at 500 or higher). The notation <=Proc{...} shows which process is responsible for this priority elevation.

5. Send to background

Press the HOME button on the device. Check the states again:

adb shell dumpsys activity processes | grep -A 10 "com.android.memorylab"

Sample output snippet:

    Proc #  2: prev     b/ /LAST --------I  t: 0 13560:com.android.memorylab:remote/u0a417 (service)
        com.android.memorylab/.RemoteService<=Proc{13470:com.android.memorylab/u0a417}
        oom: max=1001 curRaw=700 setRaw=700 cur=700 set=700
        state: cur=LAST set=LAST  lastRss=0.00 lastCachedRss=0.00
    Proc #  1: prev     b/ /LAST --------I  t: 0 13470:com.android.memorylab/u0a417 (previous)
        oom: max=1001 curRaw=700 setRaw=700 cur=700 set=700
        state: cur=LAST set=LAST  lastRss=209MB lastCachedRss=0.00

Now both processes have shifted to a lower priority state (PREV / oom_score_adj 700), because the client process is no longer TOP. (Note: LAST in the state dump refers to the LAST_ACTIVITY internal state, which maps to PREV in high-level summaries).

Analyzing with procstats

The procstats tool provides a historical view of these states.

# View stats for MemoryLab over the last hour
adb shell dumpsys procstats --hours 1 com.android.memorylab

Sample output snippet:

  *   com.android.memorylab / u0a417 / v37:
      *   Prc com.android.memorylab / u0a417 / v37:
             TOTAL: 0.89% (0.00-0.00-0.00/0.00-0.00-0.00/210MB-210MB-210MB over 1)
               Top: 0.89% (0.00-0.00-0.00/0.00-0.00-0.00/210MB-210MB-210MB over 1)
      *   Prc com.android.memorylab:remote / u0a417 / v37:
             TOTAL: 0.19%
           Bnd Top: 0.19%

Here, Bnd Top indicates the percentage of time the remote process spent being bound by an application in the TOP state.

Capturing and analyzing bindings with Perfetto

While dumpsys gives you a snapshot, Perfetto allows you to see the exact moment a binding occurs and how the OOM score changes in real-time.

1. Record a trace

Use a configuration that includes linux.process_stats and the am atrace category:

adb shell perfetto -c - --txt -o /data/misc/perfetto-traces/service_bindings.perfetto-trace <<EOF
buffers: { size_kb: 65536 }
data_sources: {
    config {
        name: "linux.process_stats"
        process_stats_config { proc_stats_poll_ms: 100 }
    }
}
data_sources: {
    config {
        name: "linux.ftrace"
        ftrace_config { ftrace_events: "am/am_proc_bound" }
    }
}
duration_ms: 15000
EOF

2. Query OOM score transitions

Using PerfettoSQL, you can see how the OOM score of the remote process changed relative to the UI process:

SELECT ts, p.name, value AS oom_score_adj
FROM counter c
JOIN process_counter_track t ON c.track_id = t.id
JOIN process p USING (upid)
WHERE p.name LIKE 'com.android.memorylab%'
  AND t.name = 'oom_score_adj'
ORDER BY ts;

3. Identify binding events

To see exactly when a binding dependency was established and which process initiated it, use this query:

SELECT
    s.ts,
    p.name AS process_name,
    t.name AS thread_name,
    s.name AS slice_name
FROM slice s
JOIN thread_track tt ON s.track_id = tt.id
JOIN thread t USING (utid)
JOIN process p USING (upid)
WHERE s.name LIKE 'bindService:{com.android.memorylab%';

System-to-app bindings

The Android system itself often binds to services in third-party apps to provide core functionality. Often the goal of these bindings is latency reduction. By keeping a process alive and in memory, the system avoids the costly overhead of a "cold start" (loading the APK, initializing the runtime, and creating the Application object) when a critical user interaction occurs. Other bindings exist to prevent frequent cold starts for apps that need to handle streams of background events.

Here are some real-world examples you can observe on a typical device:

VoiceInteractor

Users expect a digital assistant to be embedded in their phone OS, to be able to summon it instantaneously with a spoken hotword or a quick input gesture, and for the interaction to be smooth and seamless.

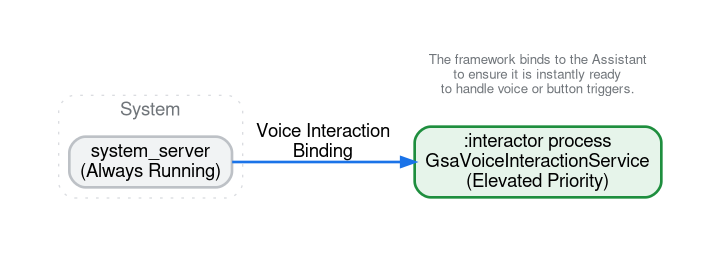

When an assistant trigger occurs (such as the "OK Google" hotword on Google Pixel phones), the digital assistant needs to respond instantly. To ensure this, system_server maintains a permanent binding to the voice interaction service that's selected by the user.

If you check the process states (e.g., using dumpsys activity processes), you might see a process like com.google.android.googlequicksearchbox:interactor in the BFGS (Bound Foreground Service) state, kept alive by a binding from system_server (UID 1000).

NotificationListenerService

For some system-to-app bindings, the goal is not latency, but rather preventing frequent cold starts. NotificationListenerService, a service that receives calls from the system when new notifications are posted or removed, is a prime example. A typical smartphone user may receive hundreds of notifications throughout the day. If the system unbound from a notification listener, that app's process would likely drop into the cached state and may be killed by the LMK.

When the next notification arrives - potentially seconds later - the system would be forced to cold start the app's process all over again just to deliver the event. This constant cycle of killing and cold starting would consume far more CPU and battery than simply keeping the process bound and alive in the background.

The launcher's "-1 screen" (news feed)

Modern Launcher apps typically combine the core navigational functionality (home icons and widgets) with a news feed that's available on one of the launcher screens and is seamlessly integrated with the Launcher UX. The news feed may be provided by another app. For instance, on Google Pixel the Launcher integrates with a feed that's provided by the Google app.

When you swipe left on your home screen to view the news feed, the transition must be smooth. The launcher achieves this by binding to a service interface in the app that provides the news feed, and maintaining that binding alive for as long as the launcher is alive. This keeps the feed content rendered and ready in memory even when you aren't looking at it.

Other common examples

• The Launcher (HOME_APP_ADJ): The launcher app (Home) has its own special slot in the priority list. While not always bound by a service, it is assigned the HOME_APP_ADJ (typically 600). The system prefers to keep the launcher alive, because the user returns to it frequently. In fact, the system would prefer to kill the previously used app (PREV_APP_ADJ = 700) than to kill the launcher, because killing the launcher would result in a sluggish user experience when exiting any app as the user will need to wait for the launcher to be cold started.
• Input Method Editor (IME): When you are typing, the system binds to your chosen keyboard app (e.g., Gboard). This keeps the keyboard process in an elevated state even if the keyboard is temporarily hidden. This ensures the keyboard can reappear instantly when you tap another text field.
• NFC Payments: When you tap your phone to pay, the system binds to the NFC payment service (e.g., Google Wallet). These transactions often have strict real-time requirements from the merchant terminal. If the payment app had to cold start, the transaction could time out and fail.

Tradeoffs and the performance cliff

While bindings are necessary for performance and correctness, they come at a cost to the system's memory health.

• Reduced Flexibility: Every bound process is a process the LMK cannot easily kill. This reduces the "cushion" of cached processes that the system can use to free up memory under pressure.
• Aggravating the Performance Cliff: If too many processes are bound, the system may find itself with almost no killable background processes. When memory pressure increases, the system will "fall off the performance cliff" much faster, as it is forced to kill more important processes or thrash the page cache.
