Speculative loading in WebView

Navigation latency is a critical metric for user experience. To help developers reduce this latency, WebView provides APIs for speculative loading, allowing your app to fetch or render content before the user explicitly navigates to it.

WebView supports three primary types of speculative loading: Preconnect, Prefetch, and Prerender.

By implementing a speculative loading strategy, you can achieve the following:

• Significant reduction in web content loading latency: Move the network start time to earlier in the app lifecycle.
• Higher navigation success rates: By pre-warming the network and cache, navigations are less likely to fail due to transient network issues.
• Better perceived responsiveness: Prerendering, in particular, enables instant transitions that make the app feel significantly faster.

Choose a speculative loading strategy

The key differentiator between these strategies lies in their scope: Preconnect API is origin-based, which means it only requires the target domain. Prefetch and Prerender APIs are URL-based, which means that they require the exact webpage path.

Because Preconnect operates at the origin level, it can be initiated much earlier in the app lifecycle, even before you know the specific content or page the user will navigate to.

The following table compares these three strategies to help you choose the right one for your use case:

Preconnect to origins

Preconnecting speeds up future loads by preemptively performing DNS lookups and TCP/TLS handshakes for a specified origin.

Unlike Prefetch and Prerender, which require an exact destination URL, Preconnect is strictly origin-based. This lets you make the Preconnect call much earlier than Prefetch and Prerender.

This low-resource, Profile-level strategy reduces initial latency for any WebView sharing that Profile, provided the origin hasn't already been visited. The connection remains open for approximately 30 seconds, benefiting any subsequent cross-origin HTTP requests, navigations, or subresources by eliminating handshake overhead.

Implementation

To initiate a preconnection, call preconnect(String url) on a Profile instance. This API must be called on the UI thread and requires the WebViewFeature.PRECONNECT to be supported.

The API operates on the origin, but for convenience, a full URL can be provided (such as https://www.example.com/index.html). This is automatically treated as a call to the origin (for example, https://www.example.com). Multiple origins can be connected to by calling this API multiple times.

// Must be called on the @UiThread
if (WebViewFeature.isFeatureSupported(WebViewFeature.PRECONNECT)) {
    profile.preconnect("https://www.example.com/index.html")
    // This initiates a connection to the origin https://www.example.com
}

// Must be called on the @UiThread
if (WebViewFeature.isFeatureSupported(WebViewFeature.PRECONNECT)) {
    profile.preconnect("https://www.example.com/index.html");
    // This initiates a connection to the origin https://www.example.com
}

Common configuration: PrefetchParameters and PrerenderParameters

Both Prefetch and Prerender use PrefetchParameters or PrerenderParameters to customize the request. These classes let you provide additional headers and hints for URL matching, such as No-Vary-Search configurations.

// Isolated configuration specifically for Cache-Level Prefetching
val prefetchParams = PrefetchParameters.Builder()
    .addAdditionalHeader("X-Custom-Client", "Android-App-V2")
    .setExpectedNoVarySearchHeader(
        NoVarySearchHeader.varyExcept(true, listOf("session_id", "click_ref"))
    )
    .build()

PrefetchParameters prefetchParams = new PrefetchParameters.Builder()
    .addAdditionalHeader("X-Custom-Header", "value")
    /**
     * Hint to ignore specific query parameters during cache matching.
     * This allows the cache to match even if the tracking_id differs.
     */
    .setExpectedNoVarySearchHeader(
        NoVarySearchHeader.varyExcept(true, Arrays.asList("tracking_id"))
    )
    /**
     * Determines if Client Hints are sent.
     * NOTE: This is ignored for Prerendering API requests, which default to
     * the WebView's WebSettings.getJavaScriptEnabled() value.
     */
    .setJavaScriptEnabled(true)
    .build();

Prefetching content

Prefetching downloads the main HTML resource of a URL and stores it in the profile's network cache. In WebView, a Profile acts as a container for browser data, including cookies, HTTP cache, and service workers. Because prefetch is a profile-level operation, any WebView associated with that profile can leverage the cached response.

Implementation

To initiate a prefetch, call prefetchUrlAsync() on a Profile instance. This operation only supports the HTTPS scheme.

profile.prefetchUrlAsync(
    url,
    prefetchParams,
    cancellationSignal,
    executor,
    object : WebViewOutcomeReceiver<PrefetchResult, PrefetchException> {
        override fun onResult(result: PrefetchResult) {
            if (result.wasDuplicate()) {
                // URL and No-Vary-Search permutations already exist in the cache layer
            } else {
                // The HTML payload has been successfully secured in the HTTP cache
            }
        }

        override fun onError(error: PrefetchException) {
            when (error) {
                is PrefetchNetworkException -> {
                    // Isolates network layer or server-side HTTP anomalies
                    val code = error.httpStatusCode
                    // Facilitates rapid diagnosis of 4xx or 5xx server responses
                }
                else -> {
                    // Catches generalized execution failures and system constraints
                }
            }
        }
    }
)

profile.prefetchUrlAsync(
    url,
    prefetchParams,
    cancellationSignal,
    executor,
    new WebViewOutcomeReceiver<PrefetchResult, PrefetchException>() {
        @Override
        public void onResult(PrefetchResult result) {
            if (result.wasDuplicate()) {
                // URL and No-Vary-Search permutations already exist in the cache layer
            } else {
                // The HTML payload has been successfully secured in the HTTP cache
            }
        }

        @Override
        public void onError(PrefetchException error) {
            if (error instanceof PrefetchNetworkException) {
                // Isolates network layer or server-side HTTP anomalies
                int code = ((PrefetchNetworkException) error).httpStatusCode;
                // Facilitates rapid diagnosis of 4xx or 5xx server responses
            } else {
                // Catches generalized execution failures and system constraints
            }
        }
    }
);

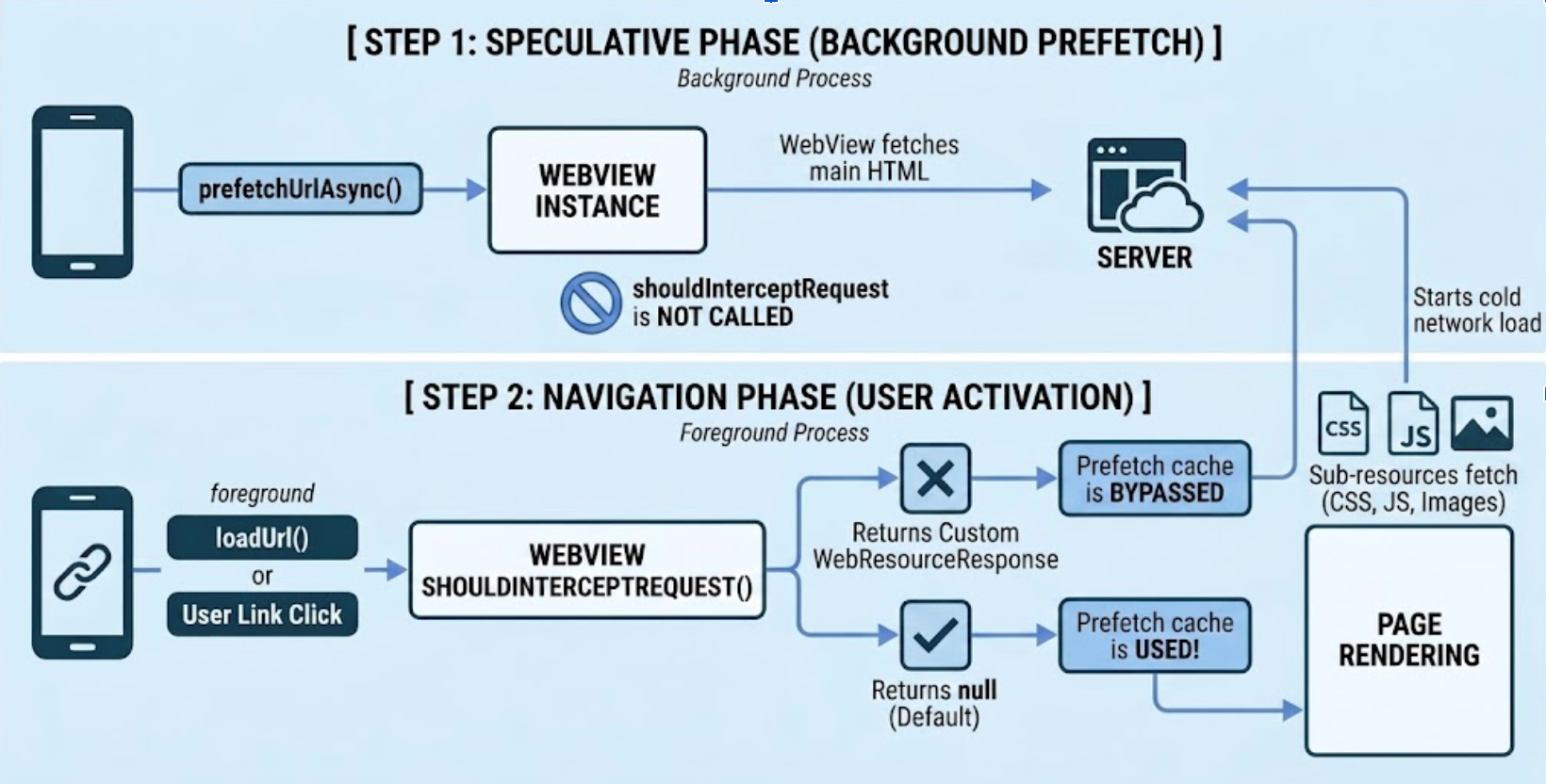

Interception lifecycle

The WebView prefetch request alters when and how the shouldInterceptRequest() callback is triggered. Because this has a direct impact on whether your prefetched content is successfully used, it is critical to understand the two-step lifecycle:

1. The speculative phase (Prefetch request)

When prefetchUrlAsync() is invoked, WebView downloads the main HTML resource in the background. shouldInterceptRequest() is completely skipped for this background request. Any custom logic, authorization tokens, or header injections typically handled inside your interceptor aren't applied to the prefetched HTML resource.

2. The navigation phase (user activation)

When the app explicitly navigates to the URL (for example, using loadUrl()) or the user clicks a matching link, WebView determines if it can use the prefetched cache:

• Main HTML evaluation: WebView will trigger shouldInterceptRequest() for the main HTML at this moment. To successfully serve the page from the prefetch cache, your interceptor must return null. If you return a custom WebResourceResponse, WebView respects your interceptor and entirely bypasses the prefetch cache.

• Sub-resource evaluation: After the prefetched HTML is cleared for use, shouldInterceptRequest() triggers normally for all subsequent sub-resources (such as, images, scripts, and CSS) required to finish rendering the page.

Key behaviors

The following operational characteristics and eligibility checks govern how WebView initiates and manages prefetch requests:

• Thread safety: Requests can be initiated from any thread.
• Eligibility: Before initiating a fetch, WebView ensures the request is safe and contextually appropriate by checking the following:
  • Existing cookies: To protect user privacy and prevent CSRF-like side effects, WebView might skip prefetching if the request requires specific authenticated cookies that could trigger a state change on the server.
  • Service worker presence: If a Service Worker is already controlling the scope of the URL, WebView can defer to the Service Worker's fetch handler rather than initiating a standard network prefetch.
  • Proxy availability: WebView verifies that the current network path (including any configured proxies) is stable to avoid failing speculative requests under complex network configurations.
• If a prefetch fails to start (even with valid parameters), it is often because WebView has determined that a background request could interfere with the user's current session or security state.
• Cancellation: Use the CancellationSignal to terminate an in-flight request and prevent it from being cached.

Prerendering pages

Prerendering creates hidden "web contents" to fully render a page in the background, including script execution and subresource fetching. Prerendering relies on the same underlying infrastructure as prefetching. If an app initiates a prerender, WebView first performs a prefetch of the response to serve the prerender navigation, avoiding redundant network activity.

Implementation

Prerendering is a WebView instance-level operation. Call prerenderUrlAsync() using WebViewCompat from the UI thread.

WebViewCompat.prerenderUrlAsync(
    webView,
    url,
    cancellationSignal,
    executor,
    params,
    object : PrerenderOperationCallback {
        override fun onPrerenderActivated() {
            // Called when the user navigates to the URL and the hidden page is swapped in
        }

        override fun onError(exception: Throwable) {
            // exception is an instance of PrerenderException
            // Handle prerender failure (for example, memory pressure or disallowed JavaScript APIs)
        }
    }
)

WebViewCompat.prerenderUrlAsync(webView, url, cancellationSignal, executor, params, new PrerenderOperationCallback() {
    @Override
    public void onPrerenderActivated() {
        // Called when the user navigates to the URL and the hidden page is swapped in.
    }

    @Override
    public void onError(@NonNull Throwable exception) {
        // Handle prerender failure (for example, resource constraints or disallowed APIs).
    }
});

Both prefetch and prerender are fully asynchronous. prefetchUrlAsync() can be called from any thread, while prerenderUrlAsync() must be initiated from the UI thread.

Technical constraints

To balance instant navigation with system health, WebView enforces the following runtime constraints:

• Memory pressure: WebView cancels pre-rendered URLs if the device is low on RAM.
• Disallowed APIs: Any attempts by JavaScript to access certain APIs (for example, audio playback, alerts) in a background context will immediately terminate the prerender.
• Instance limit: There is a limit to the number of active prerendered URLs allowed per WebView.

URL matching and No-Vary-Search (NVS)

WebView requires a reliable matching algorithm to ensure a preloaded resource is only served for its intended navigation.

Exact match versus NVS match

By default, prefetch and prerender require an exact URL match. If the navigated URL is identical to the preloaded URL, it is served from cache immediately. If query parameters differ, WebView uses the following No-Vary-Search (NVS) rules:

• The hint: Developers provide a setExpectedNoVarySearchHeader() hint during initiation. If the navigated URL matches the request URL minus the hinted parameters, WebView blocks briefly to wait for the server's actual headers.
• Server header: The NVS response header from the server is the ultimate authority. If the server confirms query differences should be ignored, the match is served from the cache. If not, WebView falls back to a cold network load.

No-Vary-Search (NVS) is for advanced usage, and most developers might not need it because they pass the exact same URL to both prefetch and loadUrl(). This guidance is only necessary if there are differences in query parameters between the prefetch URL and the loadUrl() URL.

Global configuration

Tune speculative loading behavior at the profile level by configuring PrefetchCache limits and maximum prerenders. You can also reset custom prefetch limits back to system defaults:

// Configure prefetch cache limits
profile.prefetchCache.setMaxPrefetches(10)
profile.prefetchCache.setPrefetchTtlSeconds(60)

// Reset to system defaults when needed
profile.prefetchCache.clearMaxPrefetches()

// Configure maximum active prerenders
profile.setMaxPrerenders(2)

// Configure prefetch cache limits
PrefetchCache prefetchCache = profile.getPrefetchCache();
prefetchCache.setMaxPrefetches(10);
prefetchCache.setPrefetchTtlSeconds(60);

// Reset to system defaults when needed
prefetchCache.clearMaxPrefetches();

// Configure maximum active prerenders
profile.setMaxPrerenders(2);

Error handling and exceptions

Speculative operations use an OutcomeReceiverCompat or PrerenderOperationCallback to report results.

Primary exceptions

When a speculative loading operation fails, your error handler reports one of the following primary exception types to help you diagnose specific failure scenarios:

• PrefetchException: The base class for all asynchronous prefetch errors.
• PrefetchNetworkException: Indicates a network or server level failure. It can include an httpStatusCode field (such as, 404 or 503) to help diagnose server-side issues.
• PrerenderException: The superclass for all prerender-related errors, such as failures due to memory pressure or the use of disallowed APIs (like audio playback) in the background.

Optimization strategies

Follow these recommendations to maximize the benefits of speculative loading while conserving system resources:

• Initiate early: Start prefetching during app startup or as soon as a navigation destination is likely.
• Integrated strategy: If you prerender a URL already in the prefetch cache, the prerender navigation is served from that cache, avoiding redundant network requests.
• Monitor quotas: Prerendering is resource-heavy. Prefer prefetching for several likely candidates and reserve prerendering for the single most probable navigation.
• Scheme support: Ensure all URLs use the mandatory HTTPS scheme. Invalid schemes or null inputs trigger a synchronous IllegalArgumentException.
